SWITCH INDUSTRIEL MANAGEABLE GIGABIT 4X 10/100/1G/2.5GBase-T RJ45 + 2X 1/2.5/10G SFP+ - CTC UNION
| Référence | IQS-402XSM |
|---|
Description

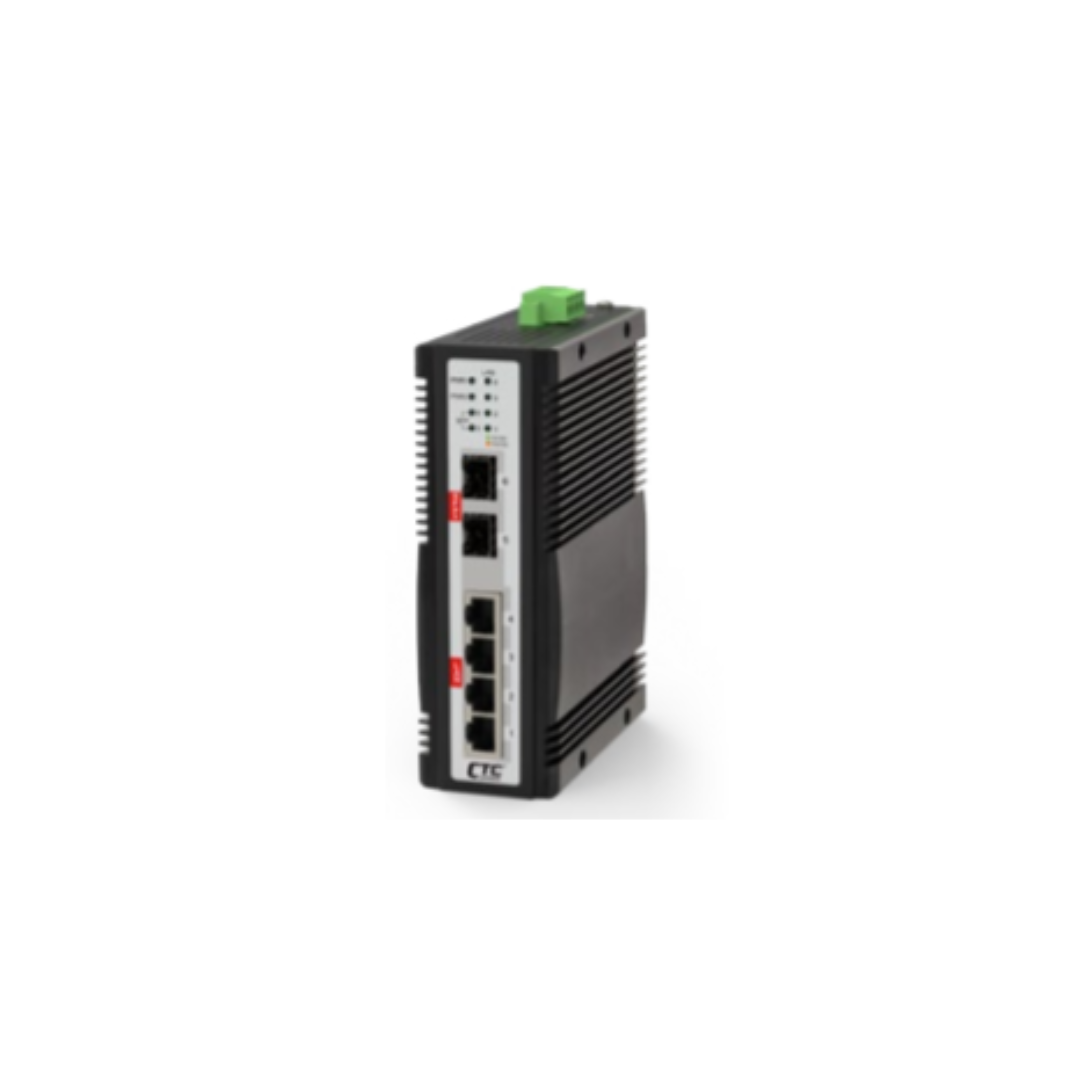

L'IQS-402XSM de CTC UNION est un switch industriel manageable disposant de 4 ports RJ45 10/100/1G/2.5G Base-T et 2 ports SFP+ 1G/2.5G/10G Base-X.
Il dispose d’une entrée d'alimentation de 12/24/48 VDC.
Garanti 5 ans.
Caractéristiques techniques
-
▪ 4x 10M/100M/1G/2.5GBase-T RJ-45+ 2x 1G/2.5G/10GBase-X SFP
▪ Provides 3 ring instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses.
▪ Supports up to 3 rings in one device (Please see CTC μ-Ring white paper for more details and more topology application)
▪ DHCP Server/Client/Relay/Snooping/Snooping option 82/Relay option 82
▪ QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
▪ IEEE802.1q VLAN, MAC based VLAN, IP subnet based VLAN, Protocol based VLAN, VLAN translation, GVRP, MVR
▪ Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
▪ IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
▪ Flexibility security: Port based and MAC based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
▪ Software upgrade via TFTP and HTTP, redundant firmware to avoid upgrade failure
▪ RMON, MIB II, Port mirroring, Event syslog, DNS, NTP, SNTP, IEEE802.1ab LLDP
▪ Supports IPv6 Telnet server /ICMP v6
▪ CLI, Web based management, SNMP v1/v2c/v3, Telnet server for management
